PTI - DC Blocking + GDT arrestor
The PTI Series from NexTek combines a precision high-pass capacitor and a gas discharge tube (GDT) into a compact, two-stage arrestor optimized for RF-only signal paths. This integrated design delivers robust transient protection while completely blocking DC energy, eliminating the need to match external I/O capacitors to protect connected equipment.
Where conventional GDT arrestors require careful coordination with radio front ends and onboard capacitor values, PTI arrestors simplify system design by providing built-in DC blocking. This makes the PTI Series ideal for RF installations where only RF energy is desired at the protected port — such as in radio receivers, test equipment, or transmit-only antennas with sensitive front ends.
Model dependent products support from 1.5 MHz to 2000 MHz, PTI units maintain excellent RF characteristics across LMR, VHF, UHF, LTE and L-band applications, where each model is engineered to provide low insertion loss, reliable surge handling, and rugged, weather-sealed housing for indoor or outdoor use.
Key Features and Benefits:
- Integrated DC block with precision high-pass capacitor
- Internal GDT stage for high-energy transient protection
- Frequency range: 1.5 MHz – 1 GHz (PTI-BB50 models)
- Ideal for receive-path and DC-sensitive RF circuits
- Weatherized (-W) Series Available
- High Power (-HP) and HEMP/NEMP (PTI-BB50H) series to be available mid 2026
Connector Types
- N-Type
Frequency Range
- 1.5 – 1000 MHz:
Threat Types
- ESD
- Lightning
- EMP
Design Highlights
- DC Block + Gas Discharge Tube design
Applications for PTI DC Blocking + GDT arrestor
PTI Series arrestors are designed for systems that require DC isolation while maintaining high-performance RF transmission. Typical use cases include:
- Receiver protection in radios, scanners, and test gear where DC continuity is undesired
- Transmit antenna systems with sensitive front-end components
- Broadcast, land-mobile, and military communications networks
- RF installations requiring simple integration and minimal tuning
PTI DC Blocking + GDT arrestor Products

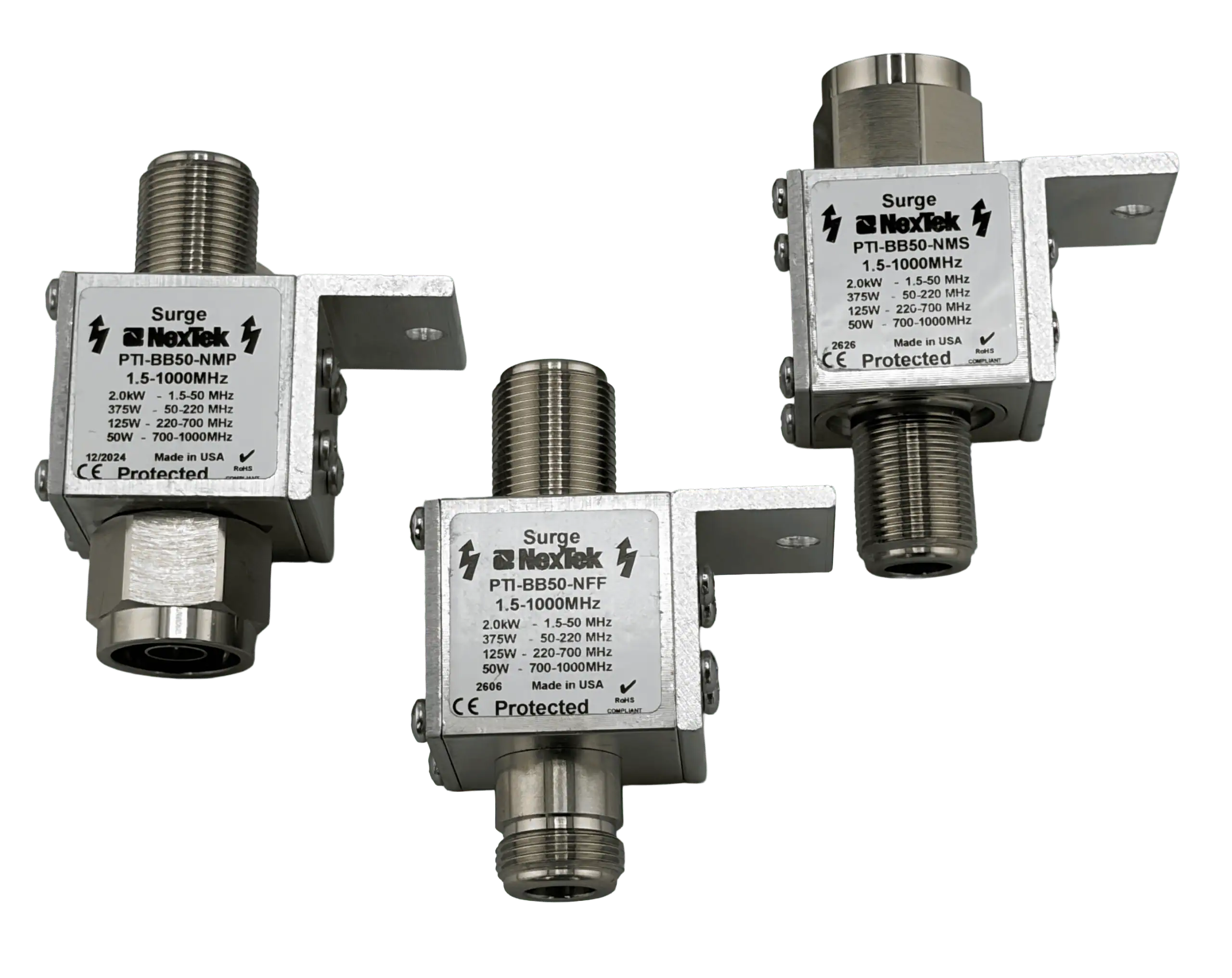

The PTI Series includes a range of models with varying connector types and mechanical formats to fit different system needs. Each arrestor is tuned to block DC while offering broadband RF pass-through and protection. Example models include:
- PTI-BB50-NFF – N‑female surge side to N‑female protected side, DC‑block + GDT arrestor for indoor installation
- PTI-BB50NMP-W – N‑female surge side to N‑male protected side, DC‑block + GDT arrestor for outdoor installs
- PTI-BB50NMS-W – N‑type male-to-female, DC‑block + GDT design, rugged weatherized version for outdoor installs
- PTI-BB50NFF-W – N‑type, female-to-female, DC‑block + GDT arrestor, weatherized IP67
For a complete list of PTI products, use our Product Finder. For help choosing the right component, contact the NexTek applications engineering team.
